How Much Weight Can Concrete Screws Hold?
Concrete screws are essential hardware used for fastening items securely into concrete and masonry surfaces. Understanding how much weight these screws can support is crucial for ensuring the safety and stability of any installation. This article explores various aspects of concrete screw strength, including their weight capacity, types of concrete, and comparisons with other types of screws.
Understanding Concrete Screw Capacity

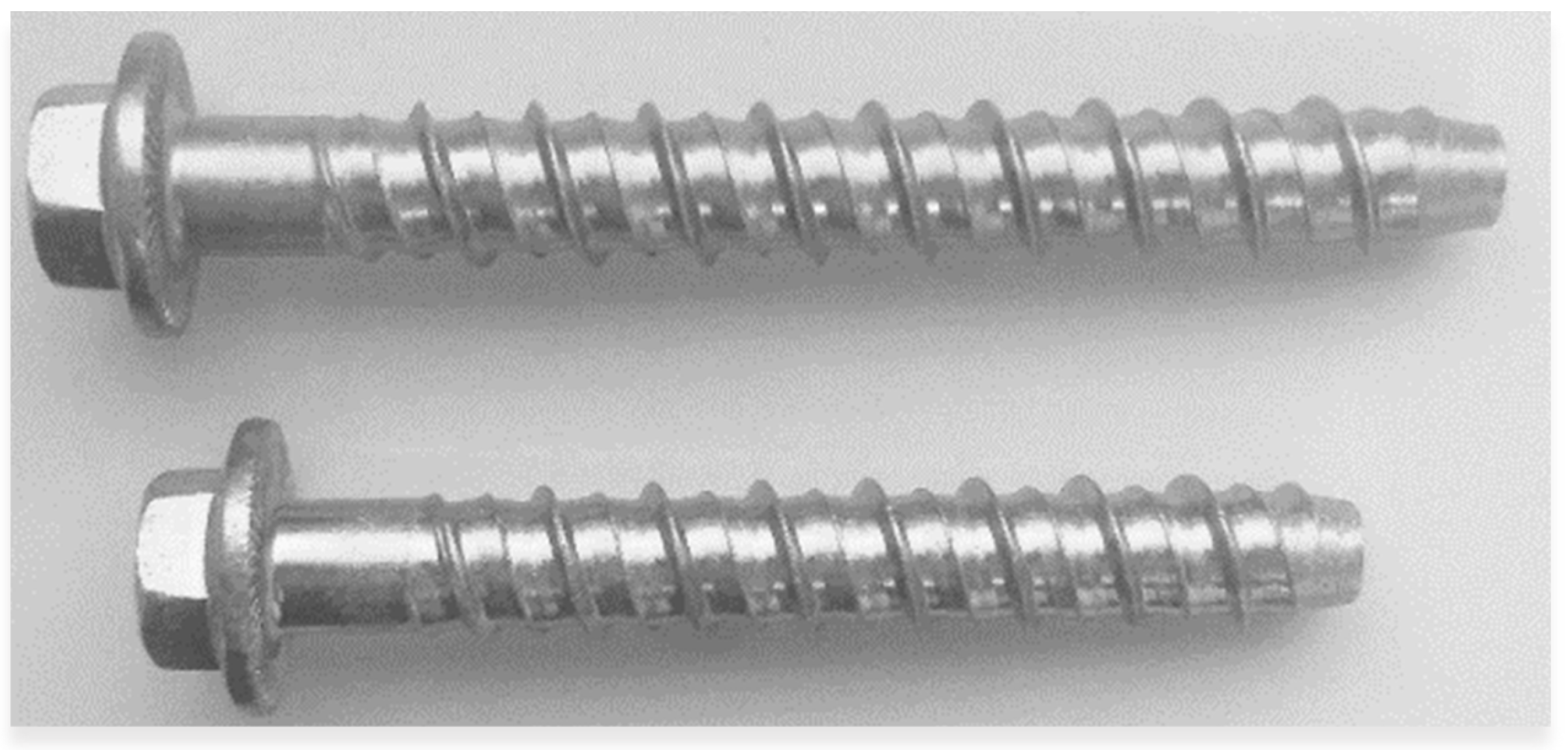

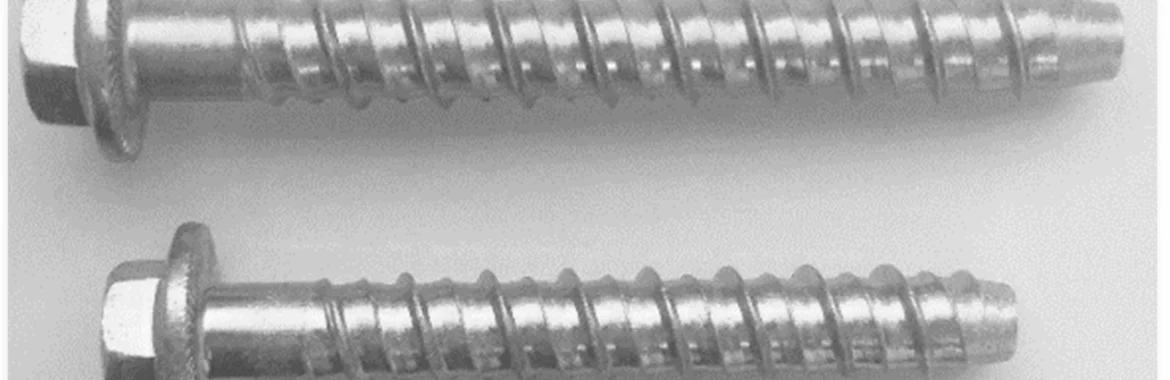

The weight capacity of concrete screws is influenced by several factors including the type of concrete, the size of the screw, and the depth of installation. Concrete screws, also known as masonry screws or Tapcon screws, are designed to provide a strong hold in concrete, brick, and block surfaces.
Factors Influencing Weight Capacity
- Screw Size and Type: The size and thread design of the screw play a significant role in determining its load-bearing capacity. Larger diameter screws and those with more aggressive threads generally hold more weight.
- Concrete Quality: The compressive strength of concrete affects how much weight screws can hold. High-strength concrete typically provides better support compared to lower-grade mixes.
- Installation Depth: Proper installation depth ensures that screws engage adequately with the concrete, maximizing their holding capacity.
- Spacing and Load Distribution: How screws are spaced and how the load is distributed across multiple screws can impact overall strength.
Weight Capacity of Concrete Screws
Here is a breakdown of how much weight different sizes of concrete screws can typically hold:
| Screw Diameter | Screw Length | Max Load Capacity (lbs) |
|---|---|---|
| 3/16 inch | 1-1/4 inch | 120 |
| 3/16 inch | 2-1/2 inch | 175 |
| 1/4 inch | 1-1/4 inch | 175 |
| 1/4 inch | 3 inch | 240 |
| 5/16 inch | 2-1/2 inch | 250 |
| 5/16 inch | 4 inch | 300 |
These values can vary based on the specific manufacturer’s specifications, concrete quality, and environmental conditions.
Concrete Screws vs. Other Screws
When comparing concrete screws to other types of screws like drywall screws or wood screws, the differences in load capacity become evident.
Drywall Screws: Primarily designed for use in drywall, these screws typically cannot hold as much weight as concrete screws. Drywall screws are generally suitable for light to moderate loads, and their weight capacity can be significantly lower than that of concrete screws.
Wood Screws: Wood screws are designed for holding materials together in wooden structures and do not perform as well in concrete. They can hold substantial weight in wood but generally lack the holding power needed for masonry or concrete.
Comparing Strength
| Type of Screw | Typical Weight Capacity (lbs) |
|---|---|
| Concrete Screws | 120 – 300 |
| Drywall Screws | 20 – 50 |
| Wood Screws | 50 – 200 |
How Much Weight Can Concrete Hold?
The weight capacity of concrete itself is influenced by its compressive strength. Compressive strength is measured in pounds per square inch (psi), and different concrete grades have different capacities.
Concrete Grades:
| Concrete Grade | Compressive Strength (psi) |
|---|---|
| Normal Weight Concrete | 2,500 – 4,000 |
| High-Strength Concrete | 5,000 – 8,000 |
| Ultra High-Performance Concrete | 10,000 – 15,000 |
The weight capacity of concrete can be significantly higher than the load-bearing capacity of screws, meaning that the limiting factor often becomes the screw or anchor itself rather than the concrete.
Concrete Screws Installation Tips
Proper installation is key to ensuring maximum load capacity. Here are some tips for installing concrete screws effectively:
- Drill Proper Holes: Use a hammer drill and masonry bit to create the correct hole size for the screws. The hole depth should be slightly greater than the length of the screw.
- Clean the Hole: Remove any debris or dust from the hole to ensure a solid grip.
- Use the Correct Screw Size: Match the screw size to the weight of the item being mounted and the type of concrete.
- Do Not Over-tighten: Over-tightening can strip the threads or damage the concrete, reducing the screw’s holding power.
- Test Load Capacity: For critical applications, consider testing the load capacity before finalizing the installation.
Strength of Concrete Screws in Different Concrete Types
The strength of concrete screws can also be affected by the type of concrete being used. Here’s a look at how different concrete types might impact screw performance:
- Normal Concrete: This is the most common type and generally offers reliable performance for concrete screws.
- High-Strength Concrete: Screws in high-strength concrete can often hold more weight due to the denser material structure.
- Lightweight Concrete: Often used for insulation purposes, lightweight concrete might offer less support compared to standard or high-strength concrete.
Concrete Screw Applications
Concrete screws are versatile and used in various applications:
- Mounting Fixtures: Securely attach shelves, brackets, and other fixtures to concrete walls.
- Hanging Heavy Objects: Use concrete screws to hang items such as large mirrors or cabinets.
- Securing Structural Elements: In construction, concrete screws are used to fasten structural components to concrete.
