Stainless steel 316 is widely recognized for its excellent corrosion resistance, especially in chloride environments, making it a top choice for many industrial applications.

Its unique combination of chemical, mechanical, and thermal properties makes it stand out among other types of stainless steel.

The addition of molybdenum gives 316 stainless steel superior resistance to pitting and crevice corrosion compared to other types, like 304 stainless steel.

Stainless Steel 316 is an austenitic alloy known for its superior corrosion resistance, particularly in chloride environments. Its key properties include:

  • Chemical Composition: Contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, enhancing its resistance to pitting and crevice corrosion.
  • Mechanical Properties: Offers a tensile strength of 515-620 MPa and a yield strength of 205 MPa, with good elongation (40-60%).
  • Heat Resistance: Maintains structural integrity at temperatures up to 870°C for intermittent use and 925°C for continuous use.
  • Applications: Commonly used in marine, chemical processing, and medical applications due to its durability and non-reactive qualities.

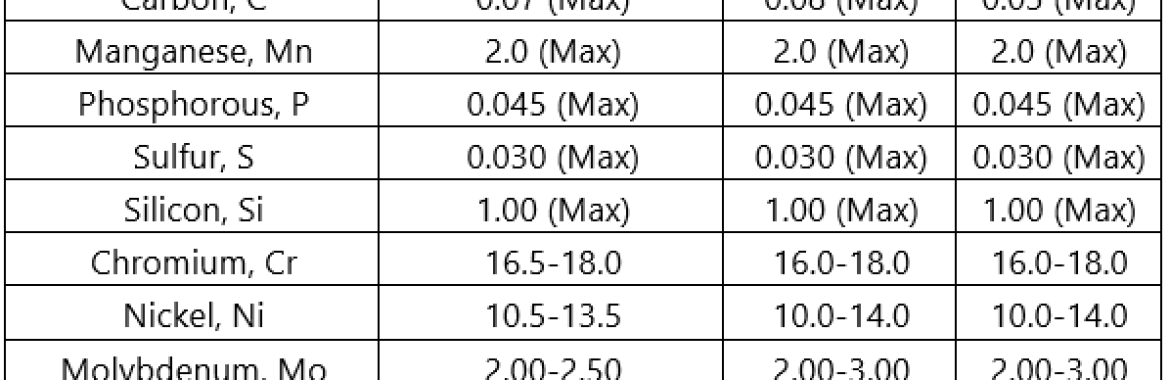

Chemical Composition of Stainless Steel 316

The chemical composition of 316 stainless steel includes:

  • Carbon (C): ≤ 0.08%
  • Manganese (Mn): ≤ 2.00%
  • Phosphorus (P): ≤ 0.045%
  • Sulfur (S): ≤ 0.030%
  • Silicon (Si): ≤ 1.00%
  • Chromium (Cr): 16.00–18.00%
  • Nickel (Ni): 10.00–14.00%
  • Molybdenum (Mo): 2.00–3.00%

This combination enhances the corrosion resistance of 316 stainless steel, particularly in acidic and chloride environments, where 304 stainless steel might falter.


Mechanical Properties of Stainless Steel 316

The mechanical properties of 316 stainless steel are highly valued for their balance of strength, toughness, and ductility, making this alloy suitable for high-stress applications.

See also  Ferrous and Non-ferrous Metals | Ferrous Metals List | List of Non-ferrous Metals
Mechanical PropertyValue
Ultimate Tensile Strength (MPa)515 – 690
Yield Strength (MPa)205 – 290
Modulus of Elasticity (GPa)193 – 200
Elongation at Break (%)40 – 60
Brinell Hardness (HB)217

The ultimate strength of 316 stainless steel and its yield strength are strong enough for many structural applications, offering excellent toughness across a wide temperature range.


316 vs 316L Stainless Steel Properties

316L stainless steel is a low-carbon variant of 316, which enhances its weldability and resistance to carbide precipitation during welding.

Property316 Stainless Steel316L Stainless Steel
Carbon Content≤ 0.08%≤ 0.03%
Corrosion ResistanceExcellentExcellent
WeldabilityGoodSuperior

Due to the lower carbon content, 316L is more suitable for welded structures, as it minimizes the risk of sensitization and intergranular corrosion in welding zones. The properties of 316L stainless steel make it ideal for construction projects requiring high corrosion resistance and frequent welding.


316 vs 304 Stainless Steel Properties

The difference between 304 vs 316 stainless steel properties primarily lies in the corrosion resistance and presence of molybdenum in 316.

Property304 Stainless Steel316 Stainless Steel
Chromium Content18 – 20%16 – 18%
Nickel Content8 – 10.5%10 – 14%
Molybdenum ContentNone2 – 3%
Corrosion ResistanceHighSuperior in chloride environments

316 stainless steel offers greater protection in environments where chlorides or marine exposure are present, making it the preferred choice for marine-grade stainless steel applications.


Corrosion Resistance of 316 Stainless Steel

The corrosion resistance of stainless steel 316 is one of its most important attributes. The addition of molybdenum significantly improves its performance in chloride environments and reduces the risk of pitting and crevice corrosion.

See also  Is Stainless Steel Better Than Carbon Steel?

Cast 316 Stainless Steel Properties

Cast 316 stainless steel shares similar corrosion resistance properties to its wrought counterpart but is often used in components like pumps and valves, where the casting process is required.

Property316 Stainless SteelCast 316 Stainless Steel
Corrosion ResistanceExcellentExcellent
ApplicationStructural, IndustrialValves, Pumps

Mechanical Properties of 316 Stainless Steel Bolts

The mechanical properties of 316 stainless steel bolts are crucial in industries requiring high strength and corrosion-resistant fastening solutions.

PropertyValue
Tensile Strength (MPa)515 – 690
Yield Strength (MPa)205 – 290
Elongation (%)40 – 50

These properties allow 316 stainless steel fasteners to withstand high-stress conditions while resisting corrosion, making them ideal for marine, chemical, and petrochemical industries.


Thermal Properties of Stainless Steel 316

The thermal properties of stainless steel 316 contribute to its effectiveness in high-temperature applications.

Thermal PropertyValue
Thermal Conductivity (W/m·K)16.3
Specific Heat (J/kg·K)500
Melting Point (°C)1371 – 1399

The thermal conductivity and melting point of 316 stainless steel make it suitable for heat exchangers, furnace components, and high-temperature environments.


316 Stainless Steel Fastener Properties

The properties of 316 stainless steel fasteners make them particularly useful in corrosive environments where reliability is essential. These fasteners offer:

  • High corrosion resistance
  • Excellent strength at elevated temperatures
  • Non-magnetic properties after annealing

Fasteners made from 316 stainless steel are ideal for marine applications, chemical processing, and other highly corrosive environments.


Physical Properties of 316 Stainless Steel

The physical properties of 316 stainless steel further enhance its versatility in various applications.

See also  Cold Working and Hot working | Residual Stresses | Recovery and Re-Crystallization
Physical PropertyValue
Density (g/cm³)7.99
Thermal Expansion (µm/m·K)16.0
Electrical Resistivity (nΩ·m)740

The density and thermal expansion of 316 stainless steel contribute to its reliability in temperature-sensitive environments, such as in the production of stainless steel 316 threaded rods and pipes.


316 Stainless Steel Magnetic Properties

316 stainless steel is generally considered non-magnetic. However, some magnetism can be introduced after cold working, which is a common phenomenon in austenitic stainless steels.

  • 316 Stainless Steel Magnetic Properties: Non-magnetic in annealed form, but slightly magnetic after cold working.

This makes 316 ideal for applications requiring low magnetic permeability, such as in medical equipment and electrical enclosures.


Material Properties of Stainless Steel 316 in Pipes

Stainless steel 316 is widely used in piping systems, particularly in environments that require corrosion-resistant materials.

PropertyValue
Tensile Strength (MPa)515 – 690
Yield Strength (MPa)205 – 290
Corrosion ResistanceExcellent

These material properties of 316 stainless steel pipes make them suitable for applications in oil and gas, chemical processing, and food industries.


Forged 316 Stainless Steel Properties

Forging 316 stainless steel increases its strength and durability, making it suitable for high-pressure and high-temperature applications.

Forged PropertyValue
Tensile Strength (MPa)540 – 690
Yield Strength (MPa)240 – 290

Forged 316 stainless steel is commonly used in valve bodies, pumps, and other high-stress components.


Strength of 316 Stainless Steel

The strength of 316 stainless steel ensures it can perform well in a variety of structural and mechanical applications. Its ultimate strength makes it an excellent choice for marine and chemical environments.

Strength PropertyValue
Tensile Strength (MPa)515 – 690
Yield Strength (MPa)205 – 290
Ultimate Tensile Strength (MPa)690

316 Stainless Steel vs Other Grades (303, 410)

When comparing 316 stainless steel to other grades such as 303 and 410, 316 offers superior corrosion resistance and better performance in extreme environments.

Property316 Stainless Steel303 Stainless Steel410 Stainless Steel
Corrosion ResistanceExcellentModerateModerate
Tensile Strength (MPa)515 – 690515 – 690480 – 600
ApplicationChemical, MarineMachiningHigh-Temperature Applications

316 stands out due to its ability to withstand harsh environments, such as chloride-rich and saltwater conditions.


Summary of 316 Stainless Steel Properties Chart

Property316 Stainless Steel
Tensile Strength (MPa)515 – 690
Yield Strength (MPa)205 – 290
Density (g/cm³)7.99
Melting Point (°C)1371 – 1399
Magnetic PropertiesNon-magnetic (annealed)
Corrosion ResistanceSuperior
Thermal Conductivity (W/m·K)16.3
Modulus of Elasticity (GPa)193 – 200

The 316 stainless steel properties chart summarizes the key mechanical, physical, and thermal properties, showing why 316 is the preferred choice for demanding environments.
