4 Bedroom Design 1238 B

4 Bedroom Design 1238 B

4 Bedroom Design 1238 B

Area127 SQM
Plot Size50*100

This table shows the plan details of a house design with a length of 14.6 meters, a width of 13.4 meters, and a floor area of 127 square meters. The plot size required for this design is 50*100, although it does not specify the unit of measurement.

4 Bedroom Design 1238 B

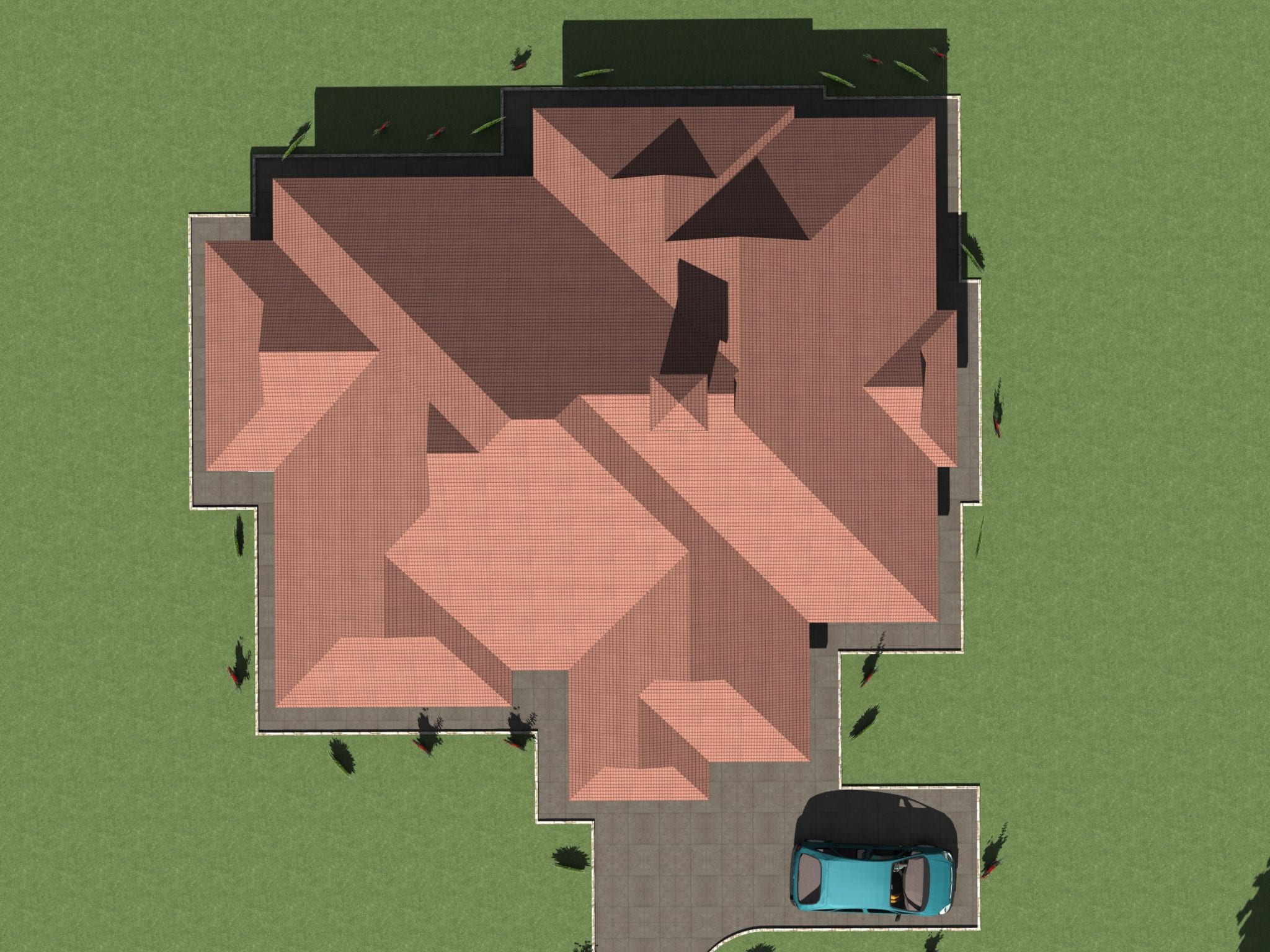

This is a 4 bedroom house design with a total floor area of 127 square meters. The minimum lot size required for this design is 160 square meters with 10 meters lot width to maintain 1.5 meters setback on both sides. To maintain 3 meters setback at the front and 2 meters at the back, the lot should have at least 16.7 meters depth. The design features a simple yet elegant style with hipped roof long span pre-painted metal type roofing in a deep red color scheme. The walls are painted with white and pale yellow combination, while the right side has brick wall accents. The design includes wood panel doors, aluminum framed sliding windows, 2 bedrooms, 1 ensuited bedroom, 2 toilet and bath.

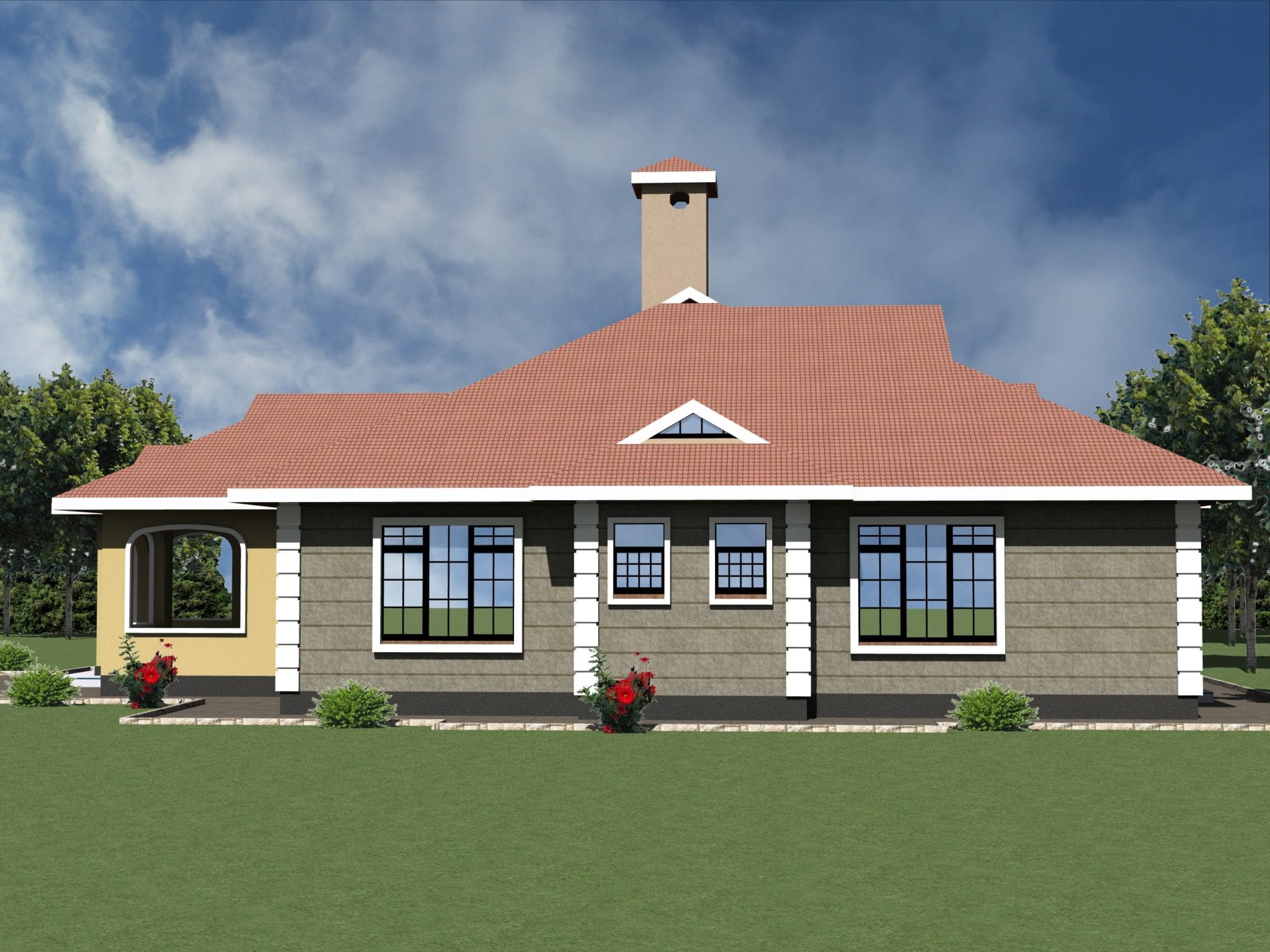

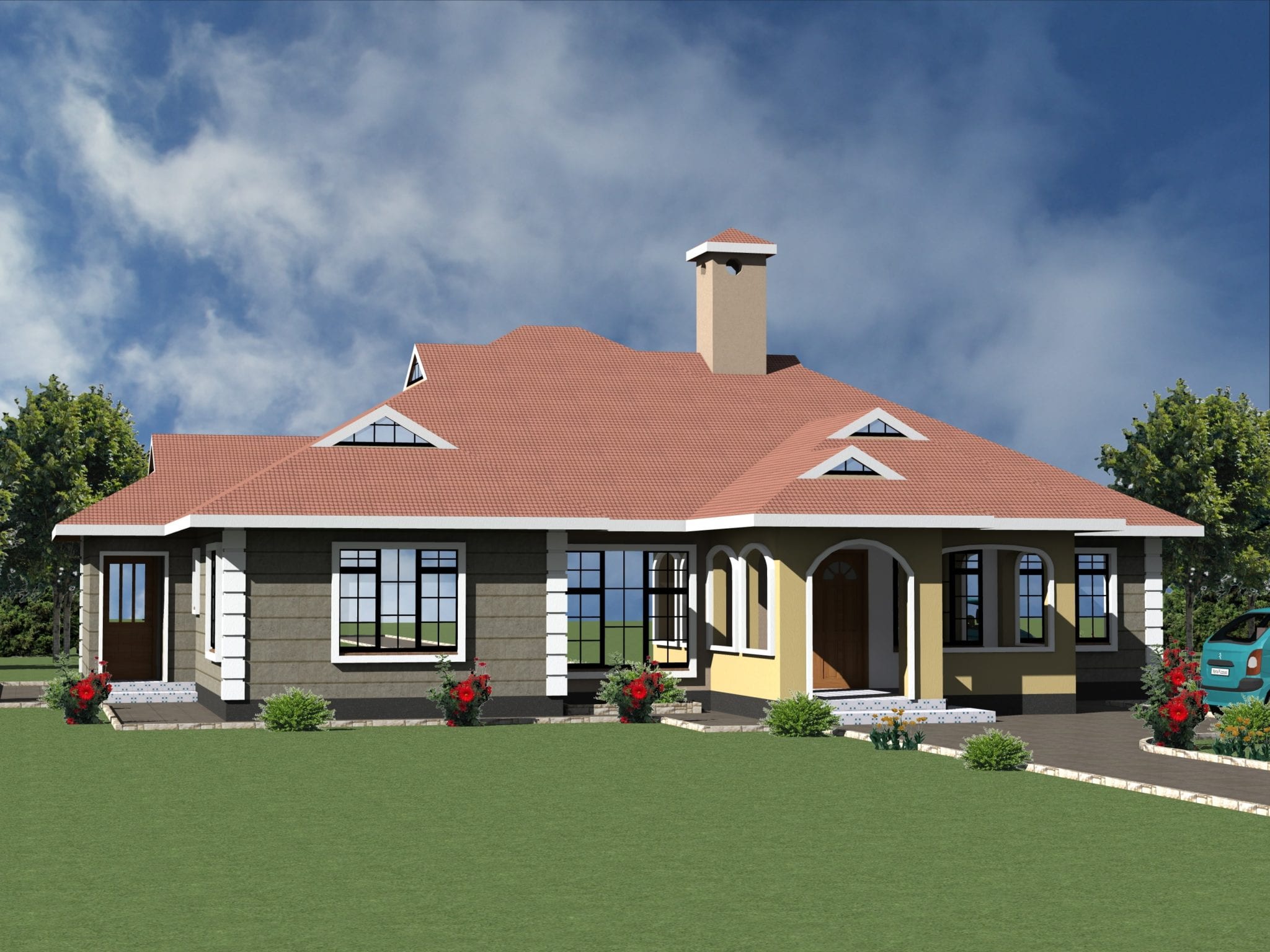

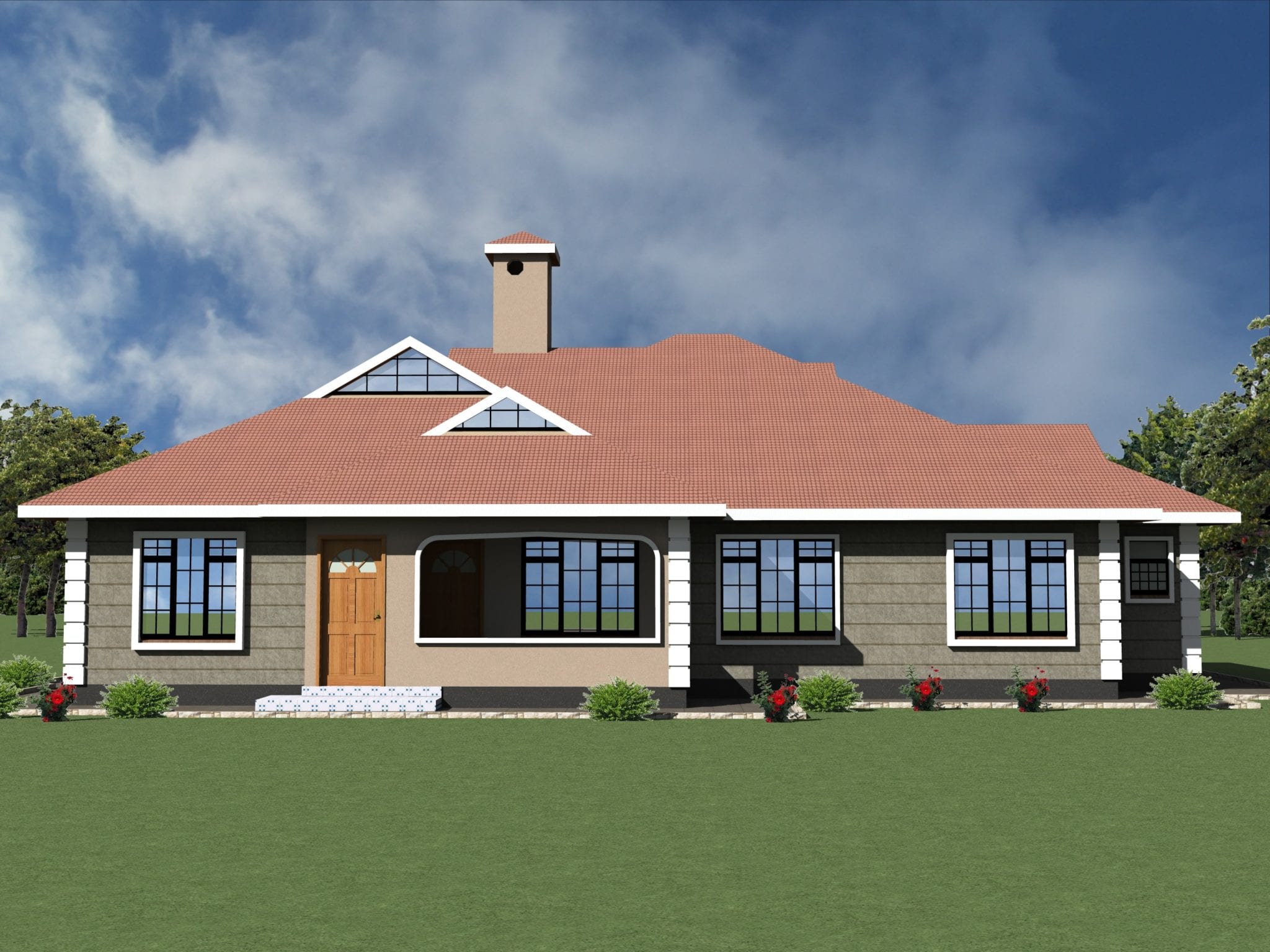

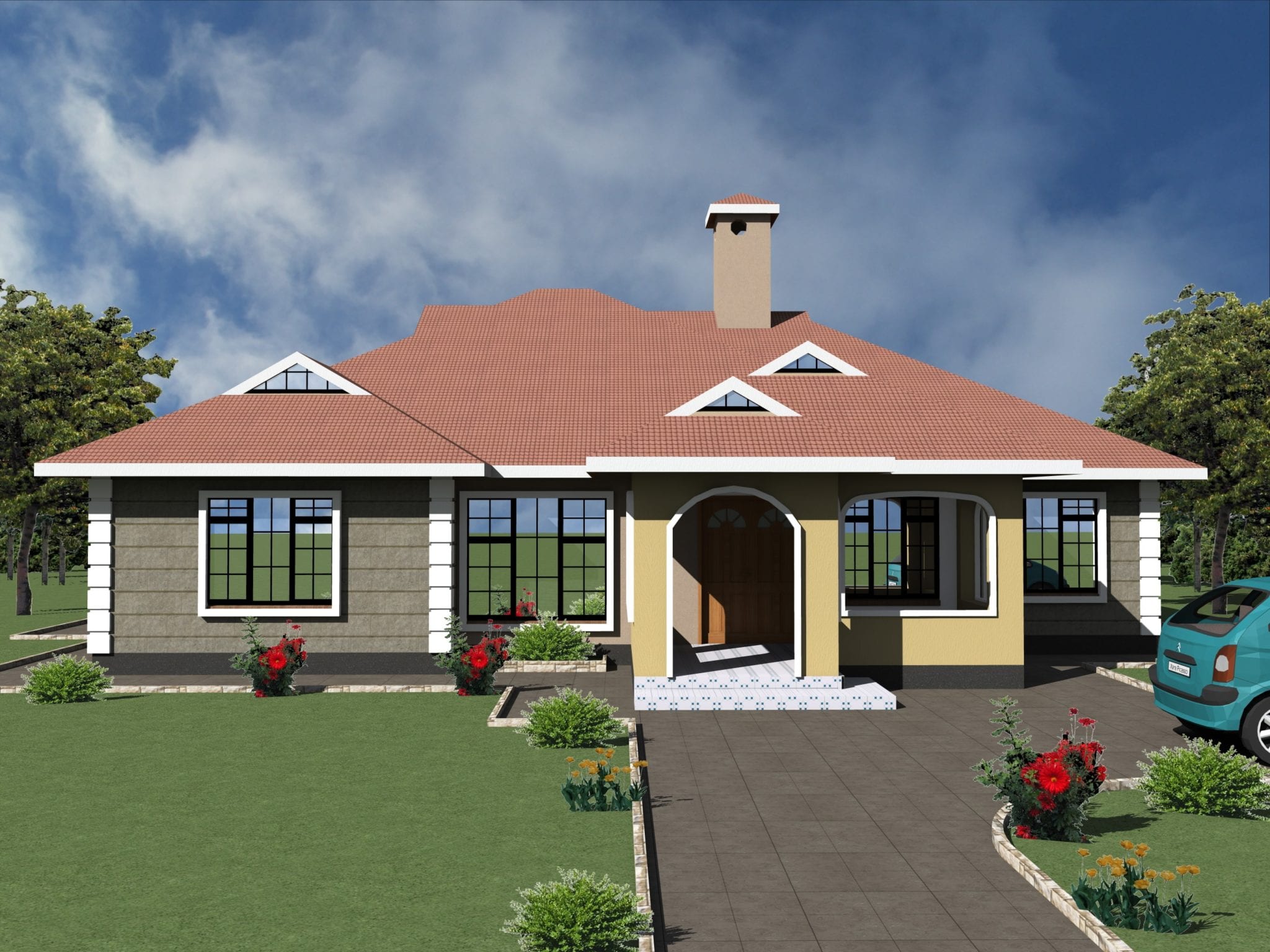

Distinctive elevations consist of the front view, right side view, left side view, and rear view, each showing details for the respective view. The floor plan is carefully designed with bedrooms located at the right and left sides of the house, with bedroom 3 ensuited on the left. The common toilet and bath is between the other two bedrooms with added privacy since it is not directly seen from the dining and living room. The master bedroom is located at the left near the front with built-in cabinet and en-suit toilet and bath.

The living room, dining, and kitchen are closed-ended and divided by masonry walls to provide more space. There is also a small veranda and a laundry entry and dirty kitchen at the back. The design includes a pantry between the kitchen and bedroom 2 and a study room between bedroom 1 and the living room. The kitchen is equipped with reliable appliances to avoid frequent appliance repair in San Jose, and consists of brands Bosch, Miele, Samsung.


Area127 SQM
Plot Required160 SQM
Floor Plan Code1238 B
Bedrooms4 (2Beds, Bedroom 3 ensuited)
Roofing TypePre-painted metal type roofing
Roof ColorDeep red
Wall ColorWhite and pale yellow with brick wall accents
DoorsWood panel
WindowsAluminum framed sliding
FeaturesMaster Bedroom with en-suit, wooden balustrades, pantry, study room, laundry entry, dirty kitchen
AppliancesBosch, Miele, Samsung



Finish LevelBudget Range
Rough Finished984,000 – 1,148,000
Semi-Finished1,312,000 – 1,476,000
Conservatively Finished2,640,000 – 2,804,000
Elegantly Finished2,168,000 – 2,996,000

The table shows the different finish levels and their corresponding budget ranges for a certain project. The rough finished level has a budget range of 984,000 – 1,148,000, while the semi-finished level has a budget range of 1,312,000 – 1,476,000. The conservatively finished level has a budget range of 2,640,000 – 2,804,000, while the elegantly finished level has a budget range of 2,168,000 – 2,996,000.

Summary Details

  • Entry porch
  • Lounge
  • Dining
  • Kitchen & Pantry
  • Study room
  • 2 Bedrooms
  • Master en-suite
  • Bedroom 3 en-suite
  • Shared Shower & WC
  • Laundry area
  • Veranda



Floor Plan


House Plans 4 Bedroom House Design | HPD Consult


LengthWidth Area Plot  Required
14.6M13.4M127 SQM 50*100


Sign Up to  Premium Account HERE to Check Cost Estimates Breakdown

ITEMConstruction Cost Estimates
1: Substructure (Foundations & slabs)Available on  Premium Account
2: WallingAvailable on Premium Account
3: RoofAvailable on Premium Account
4: DoorsAvailable on Premium Account
5: WindowsAvailable on Premium Account
6: FinishesAvailable on Premium Account
7: Plumbing InstallationsAvailable on Premium Account
8: Electrical InstallationsAvailable on Premium Account
9: Labour CostAvailable on Premium Account
TOTALAvailable on  Premium Account
