Types of Stirrups in Columns

In reinforced concrete columns, stirrups play a crucial role in maintaining structural integrity and ensuring safety. These steel reinforcements help resist shear forces and provide stability to the column.

There are several types of stirrups used, each designed to address specific structural requirements. This article explores the various types of stirrups in columns, their spacing, and related design considerations.

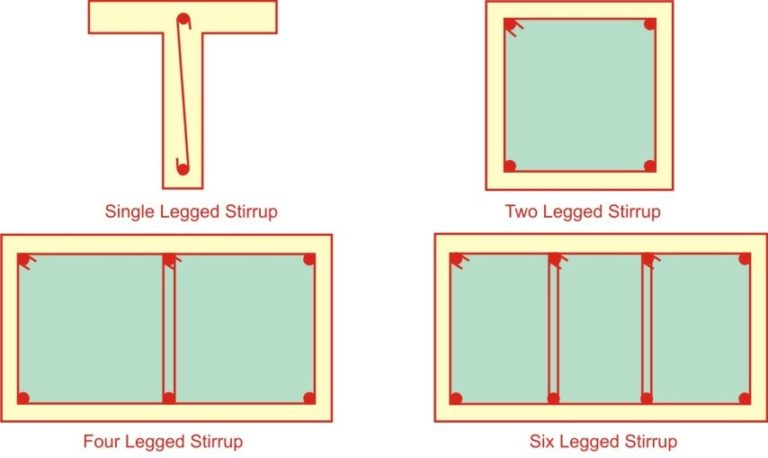

Single-Legged Stirrups (Open Stirrup)

Single-legged stirrups, also known as open stirrups, are the simplest form of stirrups used in columns. They are essentially a single loop of steel that wraps around the main reinforcement bars. This design provides minimal lateral confinement and is often used in smaller or less critical columns.

Key Characteristics:

Shape: A single loop or leg.
Usage: Typically used in less critical sections or preliminary stages of construction.
Application: Suitable for small residential columns or where minimal shear reinforcement is required.

Advantages:

Simple Fabrication: Easier and faster to manufacture and place.
Cost-Effective: Lower material cost compared to more complex stirrup types.

Disadvantages:

Limited Confinement: Provides less lateral support to the main reinforcement bars.
Not Suitable for High Shear Areas: Not ideal for columns subjected to significant shear forces.

Two-Legged or Double-Legged Stirrups (Closed)

Two-legged stirrups, also referred to as double-legged stirrups or closed stirrups, are more commonly used in concrete columns. They feature two parallel legs that encircle the main reinforcement, forming a closed loop. This design enhances the column’s ability to resist shear forces and provides better confinement to the main reinforcement.

Key Characteristics:

Shape: Two parallel legs forming a closed loop.
Usage: Suitable for medium-sized columns and areas with moderate shear requirements.
Application: Commonly used in residential and commercial buildings.

Advantages:

Improved Shear Resistance: Better performance under shear forces compared to single-legged stirrups.
Enhanced Confinement: Provides better support and prevents buckling of the main reinforcement.

Disadvantages:

Fabrication Complexity: Slightly more complex to manufacture and place than single-legged stirrups.
Cost: Higher material cost compared to open stirrups.

Four-Legged Stirrups (Closed)

Four-legged stirrups, or quadruple-legged stirrups, feature four legs forming a closed loop around the main reinforcement bars. This type of stirrup provides enhanced shear resistance and confinement compared to single and double-legged stirrups.

Key Characteristics:

Shape: Four legs forming a closed loop.
Usage: Ideal for columns with high shear forces or where additional confinement is required.
Application: Used in high-rise buildings, bridges, and other critical structures.

Advantages:

Superior Shear Resistance: Offers robust performance in high shear scenarios.
Excellent Confinement: Provides significant lateral support to the main reinforcement.

Disadvantages:

Increased Complexity: More complex to fabricate and install.
Higher Cost: Greater material and labor costs.

Six-Legged Stirrups (Closed)

Six-legged stirrups are designed for columns that require very high levels of shear reinforcement. These stirrups have six legs forming a closed loop around the main reinforcement. This type of stirrup is less common but is used in highly stressed columns.

Key Characteristics:

Shape: Six legs forming a closed loop.
Usage: Suitable for columns in extremely high shear environments or critical load-bearing situations.
Application: Used in specialized structural applications and high-load scenarios.

Advantages:

Maximum Shear Resistance: Provides the highest level of shear reinforcement.
Optimal Confinement: Ensures maximum support to the main reinforcement bars.

Disadvantages:

Fabrication and Installation Complexity: Requires advanced skills and equipment.
Cost: Significantly higher material and labor costs.

Circular Stirrups (Open Stirrup)

Circular stirrups are designed to wrap around the main reinforcement in a circular pattern. These open stirrups are used in columns with circular cross-sections.

Key Characteristics:

Shape: Circular loop around the main reinforcement.
Usage: Ideal for columns with a circular cross-section.
Application: Common in architectural structures where circular columns are required.

Advantages:

Uniform Confinement: Provides uniform lateral support around the column.
Aesthetic Appeal: Suitable for columns with architectural requirements.

Disadvantages:

Complex Fabrication: More complex to fabricate compared to standard rectangular stirrups.
Higher Cost: Increased material and labor costs.

Helical Stirrups (Open Stirrup)

Helical stirrups are a type of open stirrup that is shaped like a helix, wrapping continuously around the column. They are used in columns that require enhanced confinement and are often employed in seismic zones or in structures subjected to dynamic loads.

Key Characteristics:

Shape: Helical, continuous spiral around the main reinforcement.
Usage: Suitable for high seismic activity areas or columns needing enhanced confinement.
Application: Used in seismic retrofitting and high-performance concrete columns.

Advantages:

Enhanced Confinement: Provides continuous and uniform confinement around the column.
Seismic Performance: Improves performance in earthquake-prone regions.

Disadvantages:

High Fabrication Complexity: Requires advanced manufacturing techniques.
Increased Cost: Higher material and installation costs.

Stirrups in Column Spacing

The spacing of stirrups in columns is a critical design parameter. It influences the column’s shear capacity and overall performance. Stirrup spacing is typically determined based on the shear force, column size, and the design codes in use.

Common Spacing Guidelines:

Minimum Spacing: Typically set by design codes to ensure effective shear reinforcement and prevent issues like concrete splitting. For instance, the minimum spacing often ranges from 100 mm to 200 mm, depending on local regulations and the column’s dimensions.
Maximum Spacing: Maximum spacing is usually defined to ensure adequate shear strength and is often specified as a function of the column’s dimension or the shear force. For example, the maximum spacing might be 300 mm or 400 mm.

Table: Stirrups Spacing Comparison

Parameter	Minimum Spacing	Maximum Spacing
Residential Columns	100 mm	200 mm
Commercial Columns	150 mm	300 mm
High-Rise Columns	200 mm	400 mm

Stirrups in Column Calculation

Stirrup calculation involves determining the quantity and spacing of stirrups required to meet the design criteria for shear strength and reinforcement. This calculation is essential to ensure the column can safely support the applied loads.

Key Calculation Aspects:

Shear Force Calculation: Determine the shear force acting on the column based on load analysis and structural requirements.
Stirrup Area Calculation: Calculate the required stirrup area to resist the shear force, which involves considering factors like column size, concrete strength, and load conditions.
Spacing Determination: Based on the calculated shear force and the provided stirrup area, determine the appropriate spacing of the stirrups.

Stirrup Distance in Column

The stirrup distance in columns refers to the distance between successive stirrups along the length of the column. Proper spacing is essential to ensure effective shear reinforcement and to prevent concrete cracking or failure.

Typical Distance Guidelines:

Vertical Spacing: Vertical spacing should be consistent with design codes and typically ranges from 100 mm to 400 mm.
Adjustments: Distance may be adjusted based on column size, load conditions, and specific design requirements.

Stirrups for Circular Columns

Stirrups for circular columns differ from those used in rectangular columns. They are designed to fit around the column’s circular cross-section and ensure uniform confinement.

Design Considerations:

Shape and Placement: Stirrups are often circular or helical to conform to the column’s shape.
Confinement: Ensures that the main reinforcement is uniformly supported and confined.

Table: Stirrups for Different Column Shapes

Column Shape	Stirrup Type	Advantages
Rectangular	Single, Double, Four-Legged	Simple to complex confinement
Circular	Circular, Helical	Uniform confinement, aesthetic

Minimum and Maximum Spacing of Stirrups in Columns

Determining the minimum and maximum spacing of stirrups is crucial for ensuring that the column performs effectively under load.

Minimum Spacing: Ensures adequate reinforcement to prevent concrete splitting and ensures shear strength. Typically ranges from 100 mm to 200 mm.

Maximum Spacing: Limits are set to prevent shear failure and ensure proper confinement. Generally ranges from 300 mm to 400 mm.

8-Legged Stirrups in Columns

8-legged stirrups are used in columns requiring substantial shear reinforcement. These stirrups have eight legs forming a closed loop around the reinforcement bars, providing high levels of confinement and shear resistance.

Key Characteristics:

Shape: Eight legs forming a closed loop.
Usage: Suitable for highly stressed columns or in seismic areas
