Live Load Explained in Structural Engineering

In the context of structural engineering, live load refers to the temporary, dynamic forces that a structure must support during its usage. Unlike permanent loads such as the building materials themselves (known as dead loads), live loads include people, furniture, vehicles, and other movable items that can change position and intensity over time. This dynamic nature makes live load calculations crucial for ensuring structural safety and integrity.

What Is Live Load?

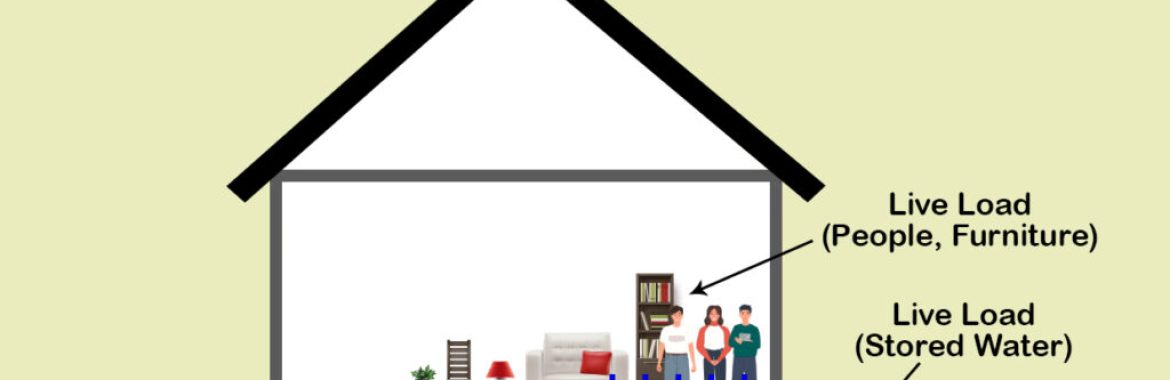

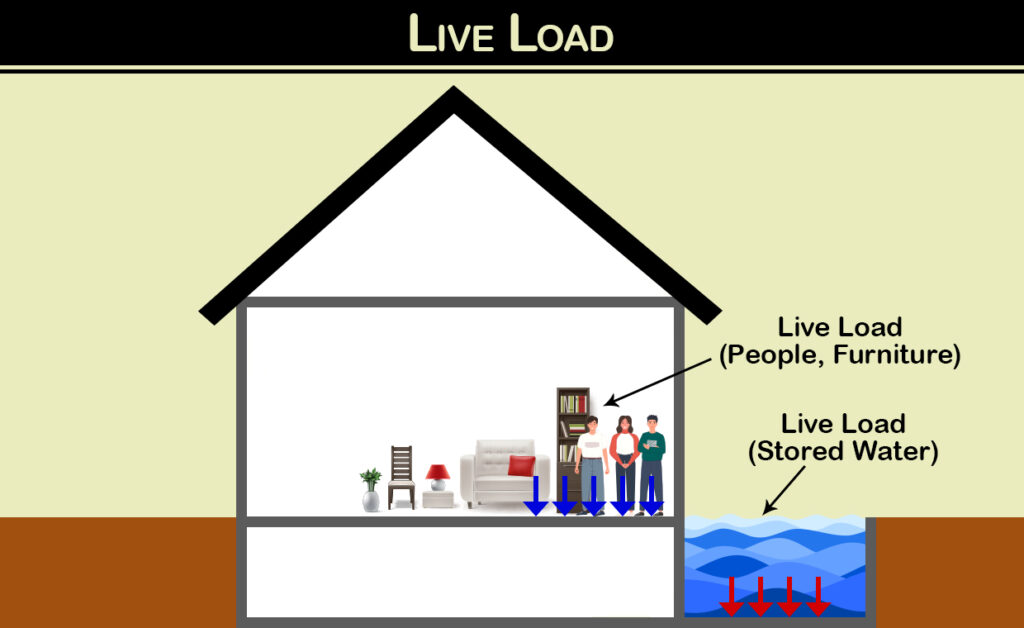

Live load is defined as the load on a structure due to occupancy, usage, or external factors that vary over time. It encompasses everything that could move or be added to the structure. This can include:

• Occupant load: people, furniture, and equipment inside a building.
• Environmental load: snow, wind, or temporary water accumulation.
• Movable equipment: vehicles on a bridge, elevators in buildings, or materials in warehouses.

Understanding live loads is fundamental in structural design to avoid overloading and potential failure of a structure. Unlike dead loads, which are constant and predictable, live loads require engineers to account for a wide range of possible conditions.

• Save

Calculation of Live Load

Accurate live load calculation is essential to guarantee structural safety. Live loads are typically determined based on guidelines from building codes and standards. The live load calculation formula is:

Live Load (LL)=Area×Load Intensity\text{Live Load (LL)} = \text{Area} \times \text{Load Intensity}Live Load (LL)=Area×Load Intensity

• Area refers to the floor or surface area subject to the load.
• Load Intensity is specified by building codes and varies depending on the type of occupancy or use of the building.

For example, a residential building might have a different live load intensity compared to a commercial warehouse.

Example Calculation of the Live Load of a Floor

Consider a residential room measuring 20 feet by 30 feet. According to standard codes, the live load for residential buildings is approximately 40 pounds per square foot (psf). The live load for this floor would be:

Live Load=20×30×40=24,000 pounds (or 12 tons)\text{Live Load} = 20 \times 30 \times 40 = 24,000 \text{ pounds (or 12 tons)}Live Load=20×30×40=24,000 pounds (or 12 tons)

This calculation helps in determining the strength and design of the structural elements, like beams and columns, required to support the varying weights safely.

Examples of Live Load

1. In Buildings: Furniture, people, appliances, movable partitions, and dynamic elements like elevators.
2. In Bridges: Vehicles, pedestrians, bicycles, and sometimes animals.
3. In Warehouses: Stacked materials, forklifts, and shelving units.
4. In Water Tanks: The weight of the stored water (considered a live load as it can vary).

Live Load Direction and Distribution

Live load direction can affect the design of beams, floors, and roofs. Loads may be vertical (downward) due to gravity, or horizontal in the case of wind or earthquake forces. Proper analysis involves determining how the load is distributed across structural members:

• Uniformly distributed loads (UDL): Evenly spread across a surface, such as furniture across a floor.
• Point loads: Concentrated at a specific location, like heavy machinery.

In engineering terms, live load distribution factor helps allocate the load among different structural elements, ensuring an even and safe distribution.

Live Load Reduction

Buildings often have areas that are unlikely to experience maximum load simultaneously. Hence, live load reduction is permitted in some codes, allowing for a decrease in design loads based on the size and usage of the area. The live load reduction formula can vary depending on national or regional building codes, but generally follows:

R=0.25×(A−150)R = 0.25 \times (A – 150)R=0.25×(A−150)

Where:

• RRR is the percentage reduction.
• AAA is the floor area in square feet.

Reduction cannot exceed a specified maximum, ensuring safety margins remain sufficient.

Live Load vs. Dead Load

Understanding the difference between live load vs. dead load is key:

• Live Load: Temporary, variable forces, such as occupants, furniture, or vehicles.
• Dead Load: Permanent, fixed forces, including the weight of the building materials themselves (e.g., walls, floors, roofs).

This distinction influences how structural components are designed, factoring in both constant and fluctuating forces.

Live Load for Various Structures

Different buildings and structures have unique live load requirements based on their use:

• Residential buildings: Generally around 1.9 kN/m² (40 psf).
• Commercial buildings: Varies significantly, but often 2.4 kN/m² to 5 kN/m² depending on occupancy.
• Elevators: For elevators in buildings, loads are often expressed in terms of kilonewtons per square meter (kN/m²), depending on their capacity.
• Gym Floors: Given the heavy equipment and dynamic usage, gym floors have higher live load requirements, sometimes exceeding 5 kN/m².
• Pedestrian bridges: Live load on a pedestrian bridge depends on expected foot traffic, with standard values provided in design codes.

Live Load Standards: Australian Perspective

In Australia, live load standards are specified by the Australian Standard AS 1170.1, which provides guidelines for minimum live loads based on building usage. For instance, residential buildings may have different requirements than commercial buildings or public structures like bridges.

Live Load in Trucking and Shipping

In freight and logistics:

• Live load (trucking): Refers to situations where the truck is loaded or unloaded while the driver waits, causing variable loads on the vehicle’s suspension.
• Live load (shipping): Similar to trucking, it indicates the process of loading goods onto a ship or container, contributing to the fluctuating weight and stability during transit.

Live Load Surcharge on Retaining Walls

Retaining walls must account for the additional pressure caused by live loads acting behind the wall. This is known as the live load surcharge, typically calculated based on the weight of vehicles or equipment near the wall.

Live Load Calculators

For more complex designs, live load calculators are utilized to streamline load calculations. These tools often incorporate building codes to automatically compute load values based on input parameters like area, usage type, and occupancy levels.

Live Load in Different Contexts

1. Water Tanks: The varying water levels in a tank contribute to a water tank live load, affecting the tank’s support structure.
2. Warehouse: The live load warehouse depends on the type and arrangement of stored goods. A racking system may distribute loads differently compared to stacked goods.
3. Trucking: Trucks experience live loads when cargo is added or removed. The positioning of goods influences load distribution and affects the truck’s balance and safety.

Live Load per Square Foot (and in kN/m²)

Live load per square foot is commonly used in building codes to specify minimum load requirements:

• Residential buildings: Typically 40 psf or 1.9 kN/m².
• Commercial buildings: Can vary, but often 50 psf to 100 psf (2.4 kN/m² to 4.8 kN/m²).

For more precise requirements, building codes and standards provide detailed tables for different occupancies and load conditions.

Tables and Visuals for Better Understanding

Table 1: Typical Live Load Values for Different Structures

Chart: Load Distribution in a Multi-Story Building

Final Thoughts

Understanding and calculating live loads accurately is crucial in structural design. It ensures that buildings and other structures can safely accommodate various dynamic forces throughout their lifespan. By considering factors such as load distribution, reduction, and standards, engineers can design structures that are both safe and efficient.
